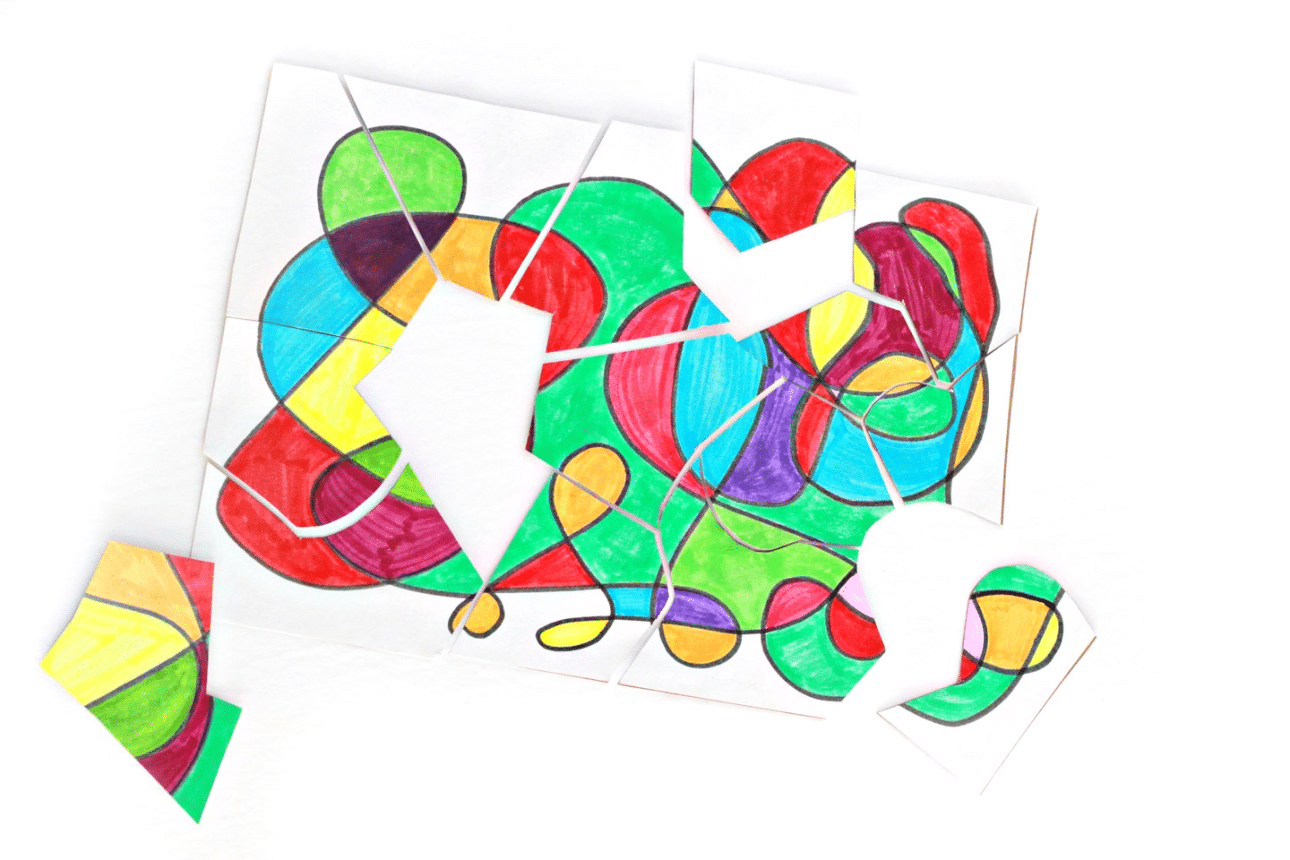

In today’s digital age, encouraging children to engage in hands-on activities that foster creativity and cognitive skills is more important than ever. Creating DIY puzzles using a laser cutting machine is an excellent way to blend technology with traditional play, resulting in personalized, educational, and fun puzzles that children will cherish.
This comprehensive guide will walk you through the entire process, from planning and designing to cutting and assembling your custom puzzles.
Benefits of DIY Laser-Cut Puzzles
· Customization: Tailor puzzles to a child’s favorite themes, such as animals, vehicles, or personalized with their name.
· Educational Value: Enhance cognitive skills like problem-solving, hand-eye coordination, and spatial reasoning.
· Quality and Durability: Laser-cut materials are sturdy and long-lasting, making them suitable for repeated use.
· Creativity: Encourage both the designer and the child to engage in a creative process, from designing to assembling the puzzle.
· Cost-Effective: Once you have access to a laser cutting machine, creating multiple puzzles can be more economical in the long run compared to purchasing them.
Materials and Tools Needed
Before diving into the project, ensure you have the following materials and tools:
Materials
· Material for Puzzle Pieces: Common choices include plywood, acrylic sheets, and MDF (Medium-Density Fiberboard). These materials are easy to cut and safe for children.
· Backing Material: Thin wood or thick cardstock can be used as a backing to add stability to the puzzle pieces.
· Decorative Items: Paints, markers, stickers, or colored vinyl for personalizing and decorating the puzzle.
· Adhesives: Wood glue or double-sided tape for assembling complex puzzles.
Tools
· Laser Cutting Machine: Essential for precisely cutting and engraving the puzzle pieces.
· Design Software: Programs like Adobe Illustrator, Inkscape, or AutoCAD are used to design the puzzle layout.
· Measuring Tools: Rulers, calipers, and a protractor for accurate measurements.
· Safety Gear: Safety glasses and ventilation masks to protect against laser fumes and debris.
Designing Your Puzzle
The design phase is crucial as it determines the puzzle’s complexity and educational value. Here’s how to approach it:
Choose a Theme
Decide on a theme that interests the child. Popular themes include:
· Alphabet Puzzles: Each piece represents a letter.
· Animal Shapes: Different animals segmented into puzzle pieces.
· Custom Images: Personal photos or drawings turned into puzzles.
· Geometric Shapes: Enhancing shape recognition and spatial skills.
Select the Puzzle Type
There are various types of puzzles you can create:
· Jigsaw Puzzles: Traditional interlocking pieces forming an image.
· 3D Puzzles: Building structures or models.
· Puzzle Maps: Geographic regions segmented into pieces for learning about areas and boundaries.
Design the Layout
Using your chosen design software:
1. Import the Base Image: If you’re creating a puzzle from an image, import it into your workspace.
2. Segment the Image: Divide the image into the desired number of pieces. For beginners, 12-24 pieces are ideal.
3. Add Connecting Tabs: Ensure that each piece has unique connectors to prevent uniform shapes, enhancing puzzle difficulty.
4. Scale Appropriately: Adjust the size of the puzzle to suit the child’s age and skill level. Larger pieces are better for younger children.
Example: Creating a Jigsaw Puzzle Design
1. Open Inkscape: A free vector design tool suitable for laser cutting.
2. Import Image: Place your chosen image onto the canvas.
3. Trace the Image: Convert the image to a vector format if it isn’t already.
4. Segment the Puzzle: Use the “Bezier” tool to draw interlocking shapes over the image.
5. Finalize the Design: Ensure all lines are closed paths for the laser cutting machine to recognize the cuts.
Preparing the Design for the Laser Cutting Machine
Once your design is complete, it needs to be optimized for the laser cutting machine:
1. Save in Compatible Format: Export your design in a format compatible with your laser cutter, typically SVG or DXF.
2. Set Proper Layers: Differentiate between cut lines and engrave lines by assigning them to separate layers with distinct colors.
3. Adjust Dimensions: Ensure that the puzzle will fit within the laser cutter’s bed size.
4. Include Tab and Slot Details: Fine-tune the connecting tabs and slots for precise interlocking.
Operating the Laser Cutting Machine Safely
Safety is paramount when operating a laser cutter, especially when children are involved in the project.
Safety Measures
· Adult Supervision: Always have an experienced adult handle the laser cutting machine.
· Protective Gear: Wear safety glasses to protect eyes from stray laser light.
· Ventilation: Operate the laser cutting machine in a well-ventilated area to avoid inhaling fumes.
· Material Safety: Ensure the materials used are safe for laser cutting and do not emit toxic fumes when burned.
Step-by-Step Laser Cutting
1. Prepare the Machine: Clean the laser cutter bed and ensure all parts are functioning correctly.
2. Load the Material: Place your chosen material securely on the cutting bed.
3. Import the Design: Send your design file to the laser cutter’s software.
4. Adjust Settings: Set appropriate power, speed, and frequency based on the material.
o Example Settings for Plywood:
§ Power: 50%
§ Speed: 300 mm/min
§ Frequency: 500 Hz
5. Run a Test Cut: Perform a small test cut to ensure settings are correct.
6. Begin Cutting: Start the laser cutting machine and monitor the process closely.
7. Remove the Pieces: Once cutting is complete, carefully remove the puzzle pieces from the bed.
Assembling the Puzzle
After cutting, it’s time to assemble the puzzle:
1. Clean the Edges: Remove any burning residues or rough edges with sandpaper for safety.
2. Test Fit: Before finalizing, fit the pieces together to ensure they interlock smoothly.
3. Secure Connections: For wooden puzzles, apply wood glue to the edges of the tabs and slots for added stability.
4. Let it Dry: Allow the adhesive to dry completely as per the manufacturer’s instructions.
Decorating and Personalizing
Personalization adds a unique touch to your DIY puzzles:
Painting
· Acrylic Paints: Safe and vibrant; ideal for wooden or acrylic puzzles.
· Stencils: Use stencils to maintain clean lines and patterns.
Engraving Details
· Names and Labels: Engrave the child’s name or educational labels (e.g., numbers, letters) onto the puzzle pieces.
· Design Elements: Add decorative motifs like stars, hearts, or thematic icons.
Adding Finishes
· Varnish or Sealant: Protect your artwork with a clear finish to make it durable and moisture-resistant.
· Decoupage: Use decorative paper or fabric to add intricate designs and then seal them with glue.
Example: Creating a Personalized Alphabet Puzzle
1. Design: Each puzzle piece is shaped like a letter.
2. Engrave: Engrave both the uppercase and lowercase of each letter onto their respective pieces.
3. Paint: Color each letter distinctly to make learning engaging and visually appealing.
Tips for Success
· Start Simple: If you’re new to laser cutting, begin with simpler designs before attempting complex puzzles.
· Consistent Testing: Regularly test your designs on scrap material to fine-tune settings and fit.
· Quality Materials: Use high-quality materials to ensure clean cuts and durable puzzles.
· Involve the Child: Let children participate in choosing themes or colors to increase their engagement and excitement.
· Storage Solutions: Create a dedicated box or storage system for the puzzle pieces to keep them organized and easily accessible.
Safety Considerations
Creating puzzles with a laser cutting machine involves handling machinery that can pose risks if not managed properly. Here are essential safety tips:
· Never Leave Unattended: Always supervise the laser cutting machine while it’s in operation.
· Proper Training: Ensure that anyone operating the laser cutting machine is adequately trained.
· Emergency Protocols: Familiarize yourself with the laser cutter’s emergency shut-off procedures.
· Avoid Flammable Materials: Do not use materials that easily catch fire or emit toxic fumes.
· Regular Maintenance: Keep the laser cutter clean and well-maintained to prevent malfunctions.
Conclusion
Creating DIY puzzles for kids using a laser cutting machine is a fulfilling project that combines creativity, education, and technology. Not only does it provide a personalized and engaging learning tool for children, but it also offers a fantastic opportunity for parents and educators to bond over a shared creative endeavor.
By following this guide, you can design, cut, and assemble beautiful and functional puzzles that will entertain and educate children for years to come. Embrace the fusion of traditional craftsmanship and modern technology to spark imagination and cognitive growth in the young minds around you.
