A retaining wall supports soil and helps manage uneven ground in outdoor spaces. It can reduce erosion, control water movement, and create usable levels in a yard.
While the structure may appear simple, its strength depends on how well it is built from the ground up. Small mistakes in the early stages can lead to shifting or damage later.
This guide walks you through the process in a clear, practical way. It focuses on the key steps for building a strong retaining wall that can withstand pressure and remain stable over time.
Understanding Retaining Walls and Their Use

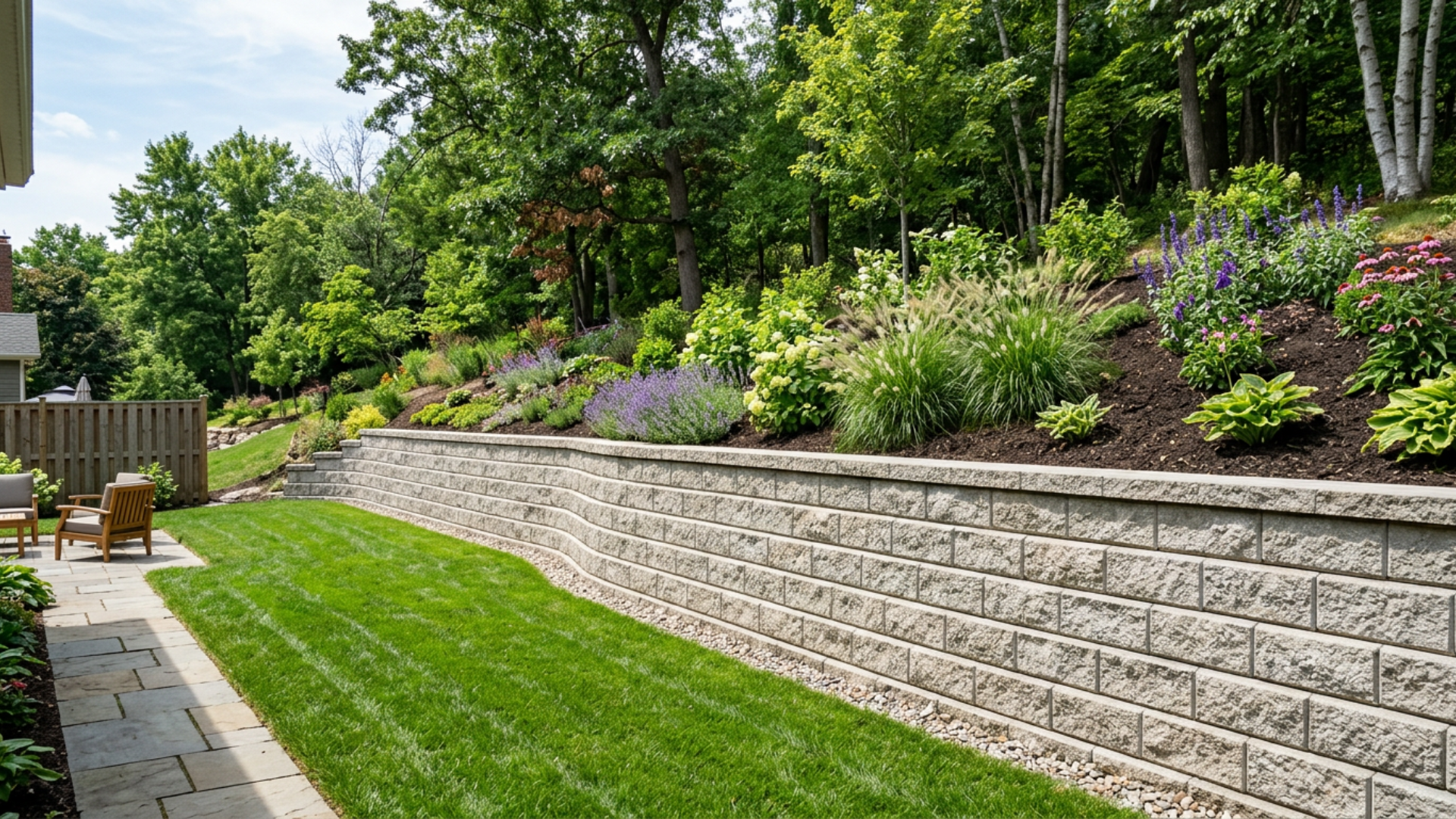

A retaining wall is a structure built to hold back soil and keep it from moving downhill. It is often used where the ground is uneven or sloped.
By forming a firm barrier, the wall helps maintain the shape of the land and prevents soil from shifting over time.
These walls create flat spaces in a yard, making room for gardens, walkways, or seating areas. In areas with heavy rain, they also help control water flow and reduce erosion.
Beyond its functional purpose, a retaining wall adds structure to an outdoor space and clearly defines different sections.

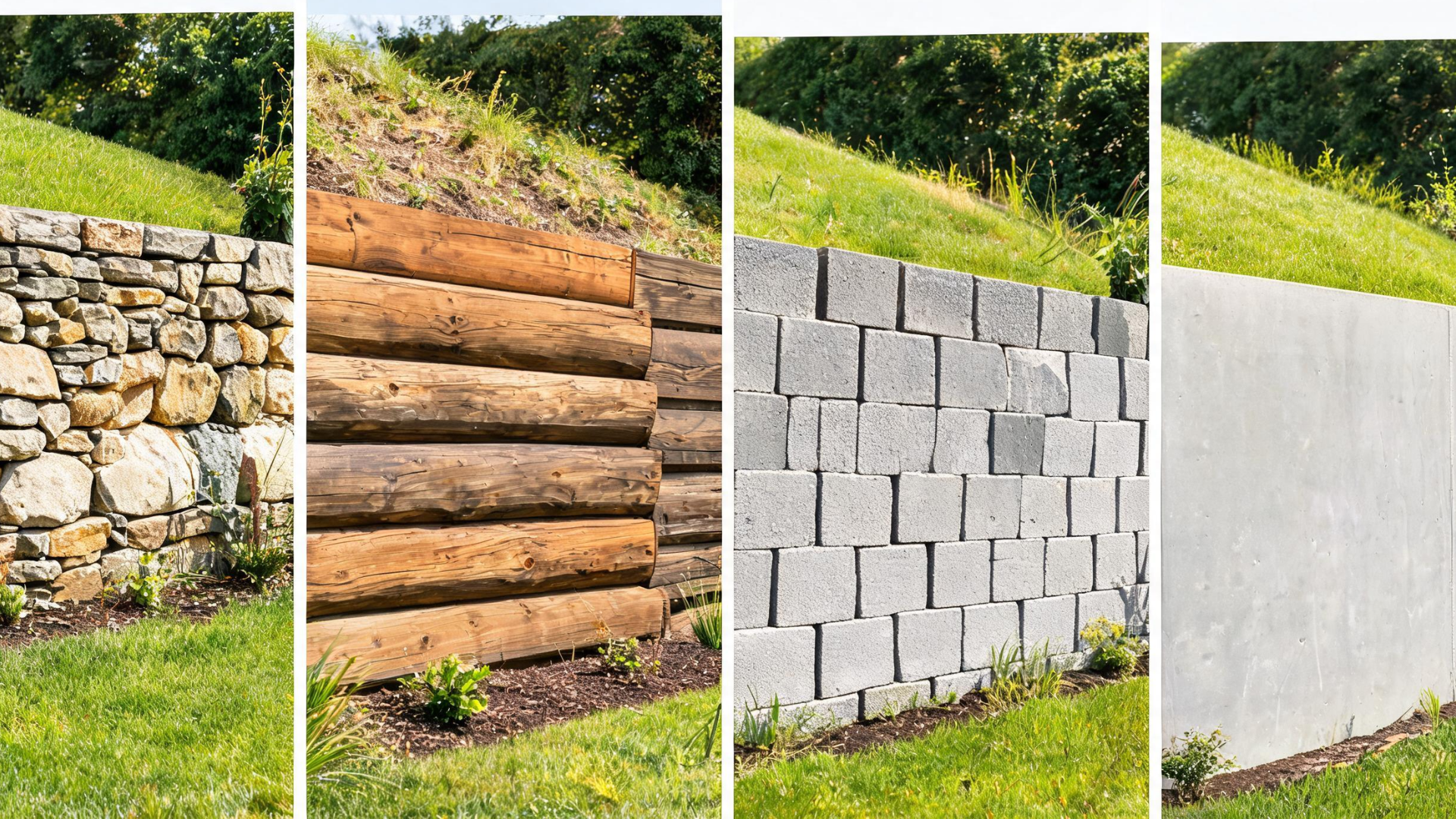

Types of Retaining Walls You Can Build
Different types of retaining walls suit different needs, budgets, and soil conditions. Choosing the right type depends on height, load, and the look you want.
Gravity Retaining Walls
These walls rely on their own weight to hold back soil. They are usually made from stone, concrete blocks, or brick. Their thickness and mass provide stability, making them a common choice for small to medium projects.
Segmental Block Walls
Segmental walls use interlocking concrete blocks. They are easy to install and do not always require mortar. This type is popular for DIY projects because of its strength and simple setup.
Timber Retaining Walls
Timber walls are built using treated wood. They are affordable and work well for short walls in gardens. However, they may not last as long as stone or concrete options.
Poured Concrete Walls
These walls are made by pouring concrete into forms. They are very strong and suitable for taller walls or areas with heavy pressure. They require more skill and preparation to build.
Cantilever Retaining Walls
Cantilever walls use a reinforced concrete base that extends into the soil. This design helps balance the load and adds strength. They are often used in larger or more demanding projects.
Tools and Materials Required
| Tools | Materials |
|---|---|
| Shovel (spade & flat) | Retaining wall blocks |
| Rake | Type 2 gravel (base) |
| Pickaxe (for rocky soil) | 3/4″ drainage gravel |
| Hand tamper | Soil/backfill dirt |
| Levels (4 ft, 2 ft, torpedo) | Landscape adhesive |
| Rubber mallet | Drain pipe (optional) |
| Mason’s chisel | Sand (for leveling) |
| Mini sledgehammer | Stakes and string (optional) |
| Caulking gun | Topsoil |
Step-by-Step: How to Build a Retaining Wall
Building a retaining wall requires precision at every stage. A small mistake early on can affect the entire structure later. The steps below follow a practical method that focuses on stability, drainage, and long-term performance.
Step 1: Plan the Wall Layout and Design

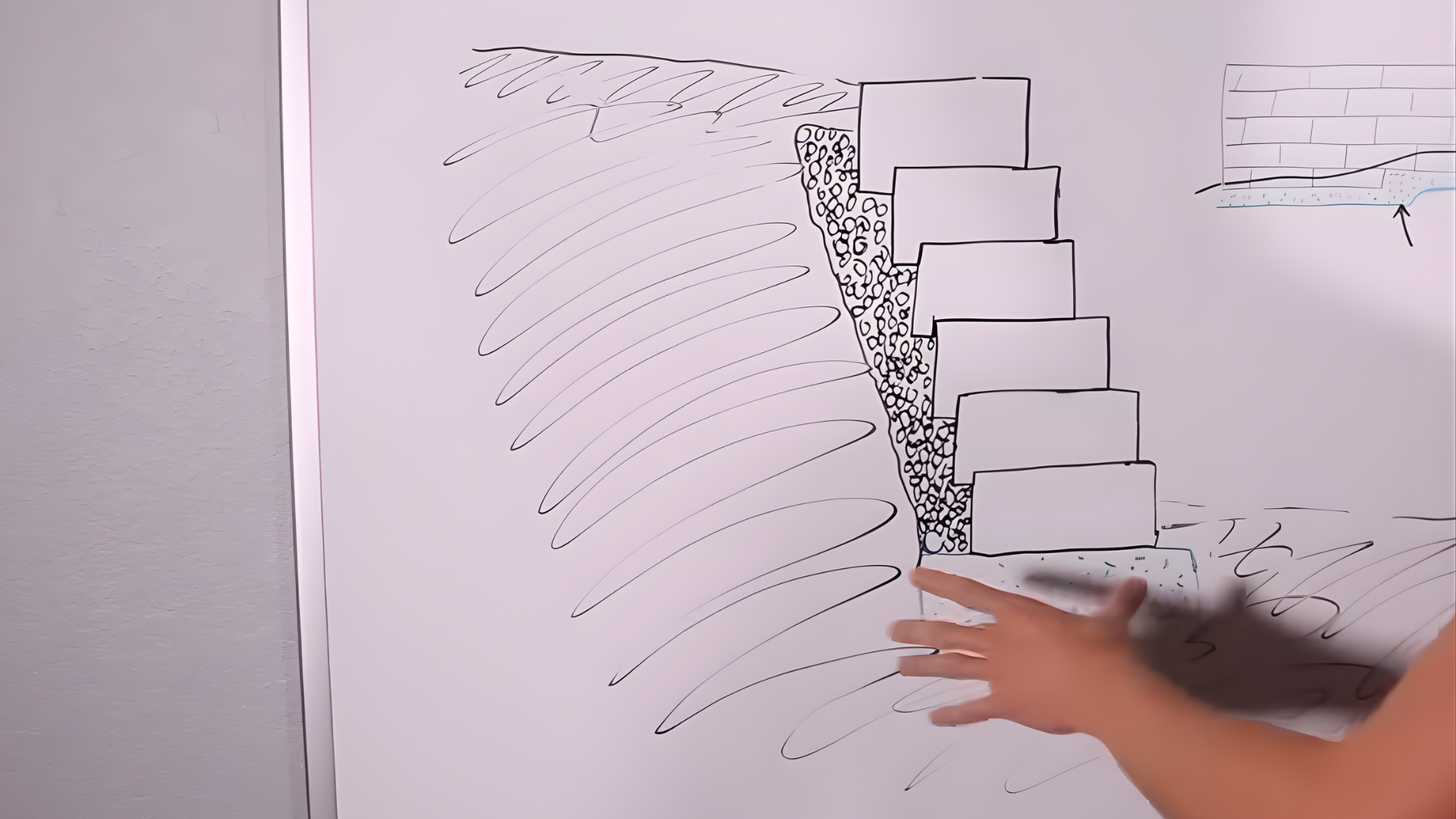

Start by understanding how the wall will be built. A typical retaining wall includes a compacted gravel base, stacked blocks, and drainage material behind it.
Decide the wall height, length, and location. The height will affect how deep you dig and how much support is needed.
Think about drainage, soil movement, and where excess dirt will go. It is also important to check for underground utilities and local building rules. A clear plan helps avoid mistakes later.

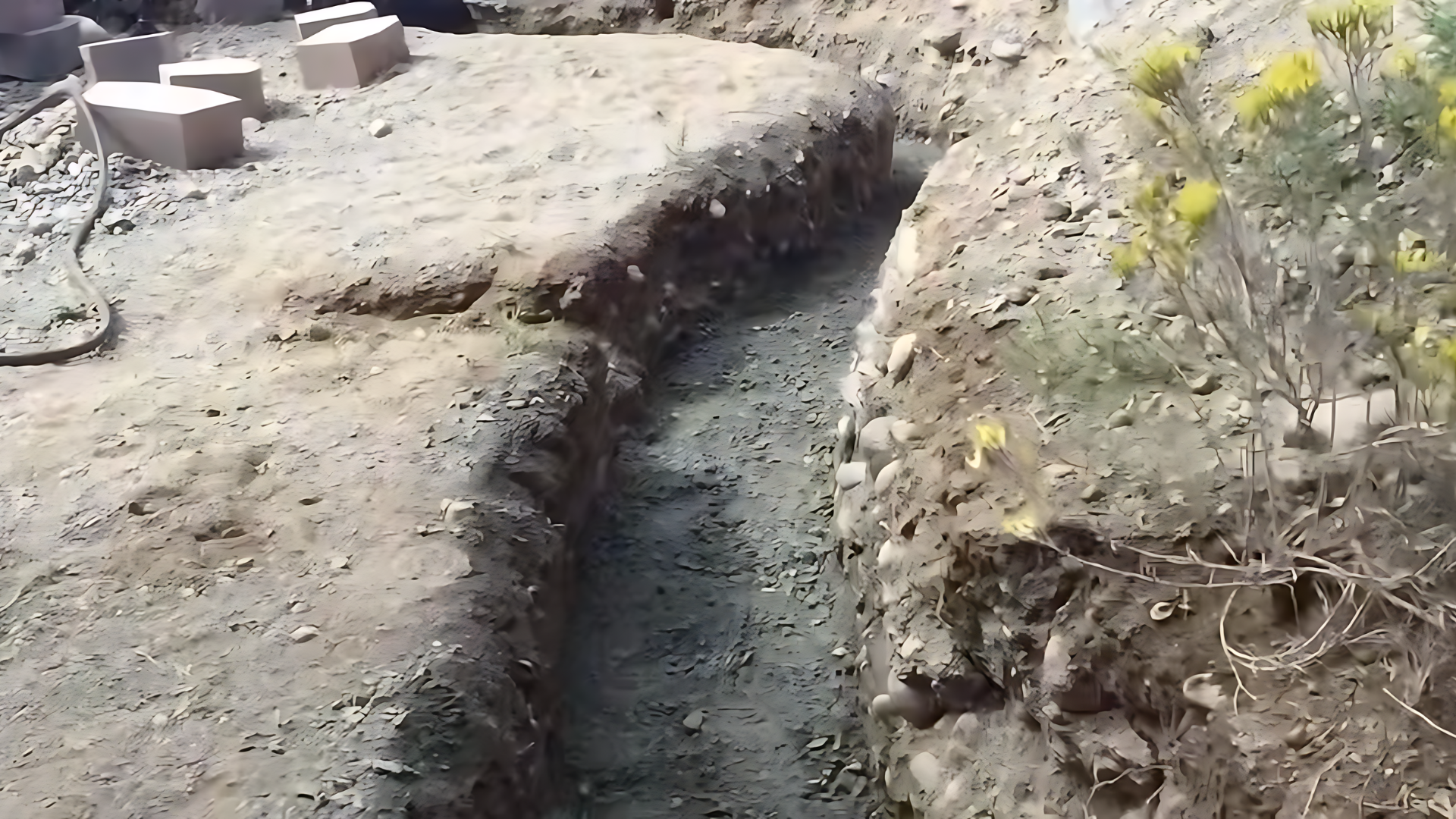

Step 2: Mark and Dig the Trench
Once the layout is set, mark the wall line using stakes and string if needed. Then begin digging the trench along that line.
The trench should be wide enough to accommodate the blocks and drainage material behind them. Focus on keeping the trench bottom level.
This will directly affect how straight and stable the wall turns out to be. Dig deep enough to fit the gravel base and partially bury the first row of blocks. Taking time here makes the next steps much easier.

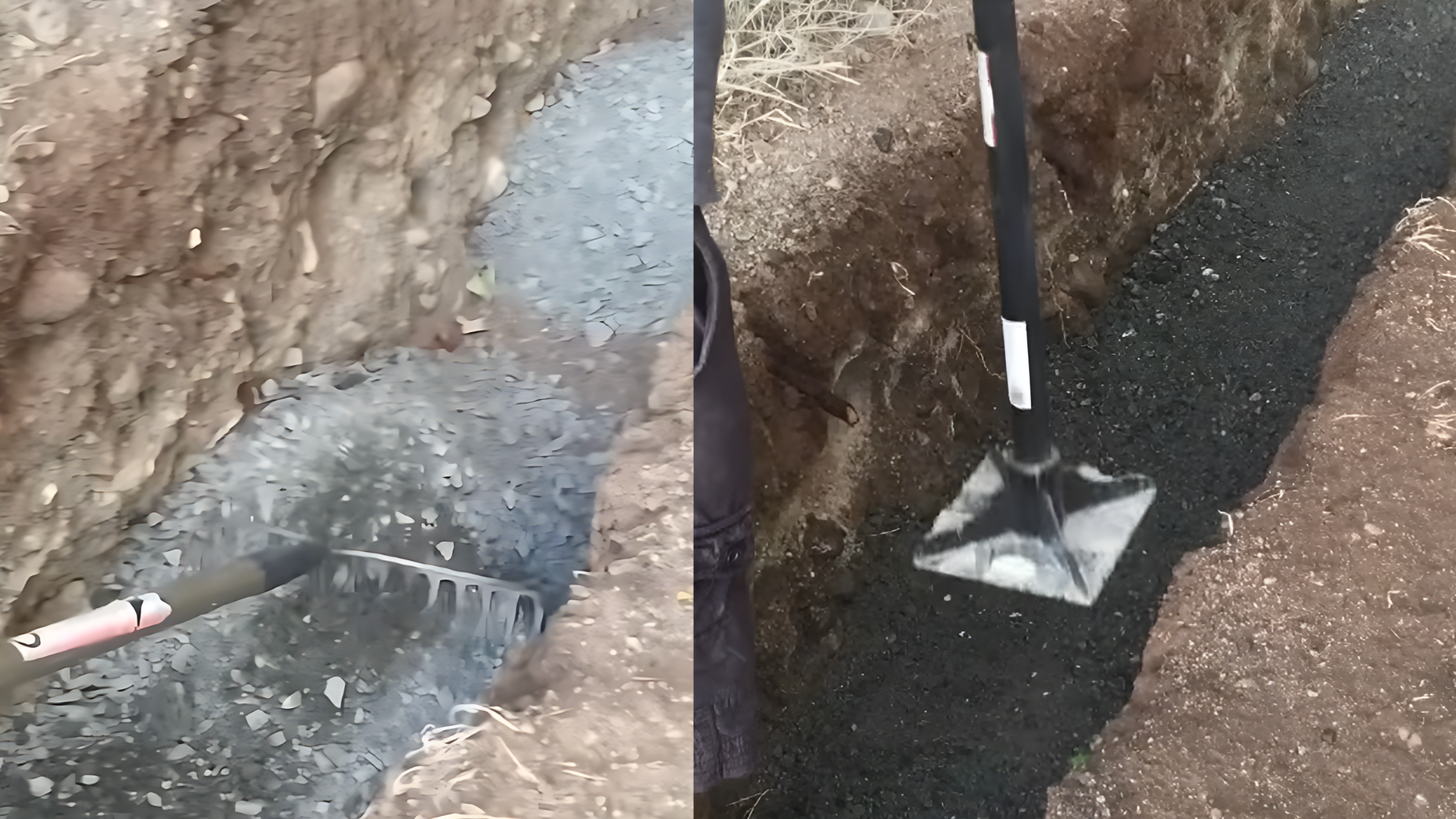

Step 3: Build and Compact the Gravel Base
The gravel base serves as the foundation for the wall. Add gravel in layers about 2 inches thick, spreading it evenly with a rake. After each layer, use a hand tamper to pack it down firmly.
Repeat this process until you reach around six inches of compacted base. If needed, lightly dampen the gravel to improve compaction.
Once complete, level the surface carefully and tamp it again. A strong base prevents the wall from shifting or sinking over time.

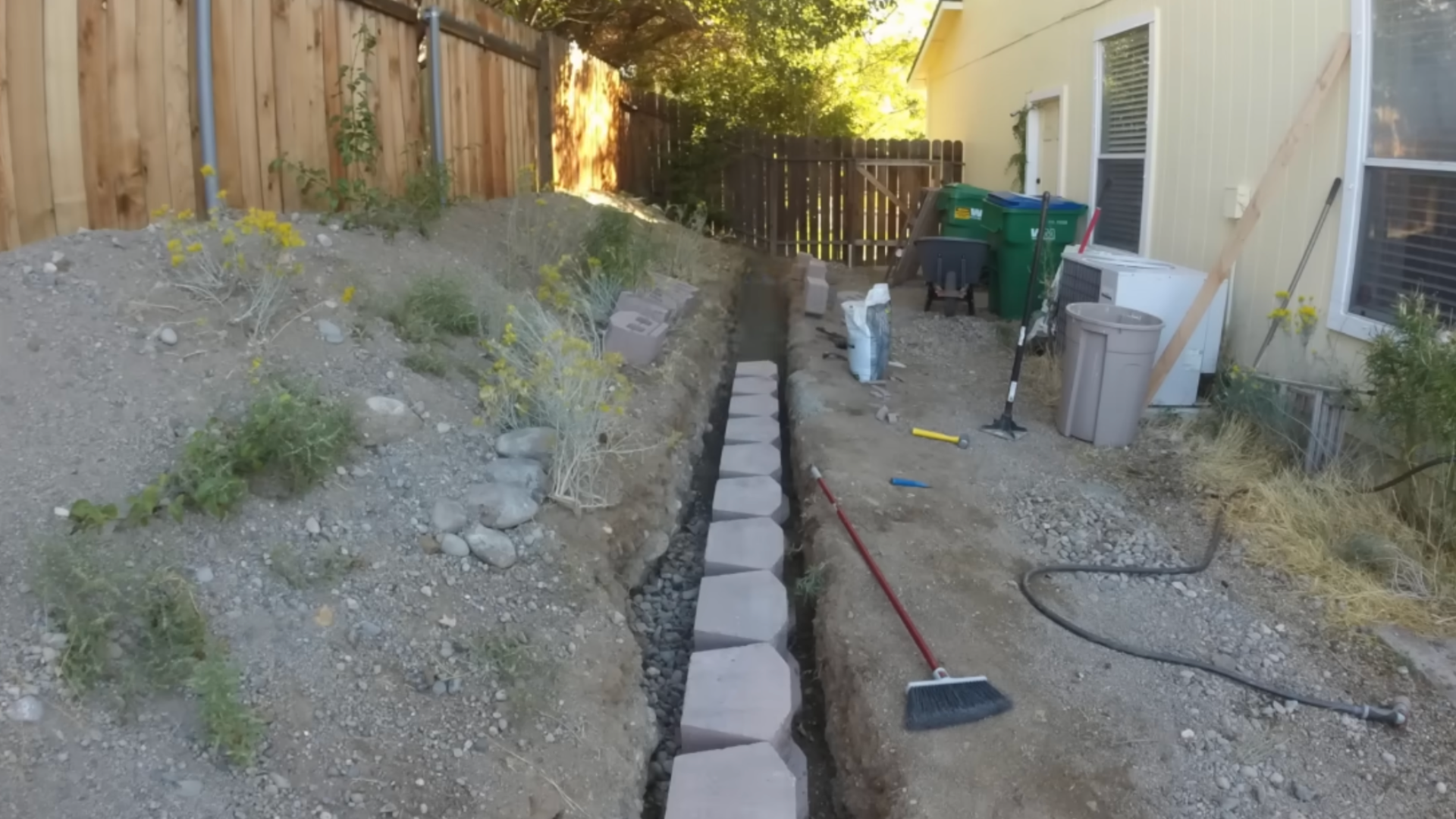

Step 4: Lay the First Row of Blocks
Place the first row of blocks starting at one end and work across. This step requires the most attention because every block must be level.
Check each block with a level and adjust as needed. If a block sits unevenly, lift it and add a small amount of sand underneath to correct it. Avoid rushing this stage. A properly aligned first row creates a stable foundation for all the layers above.

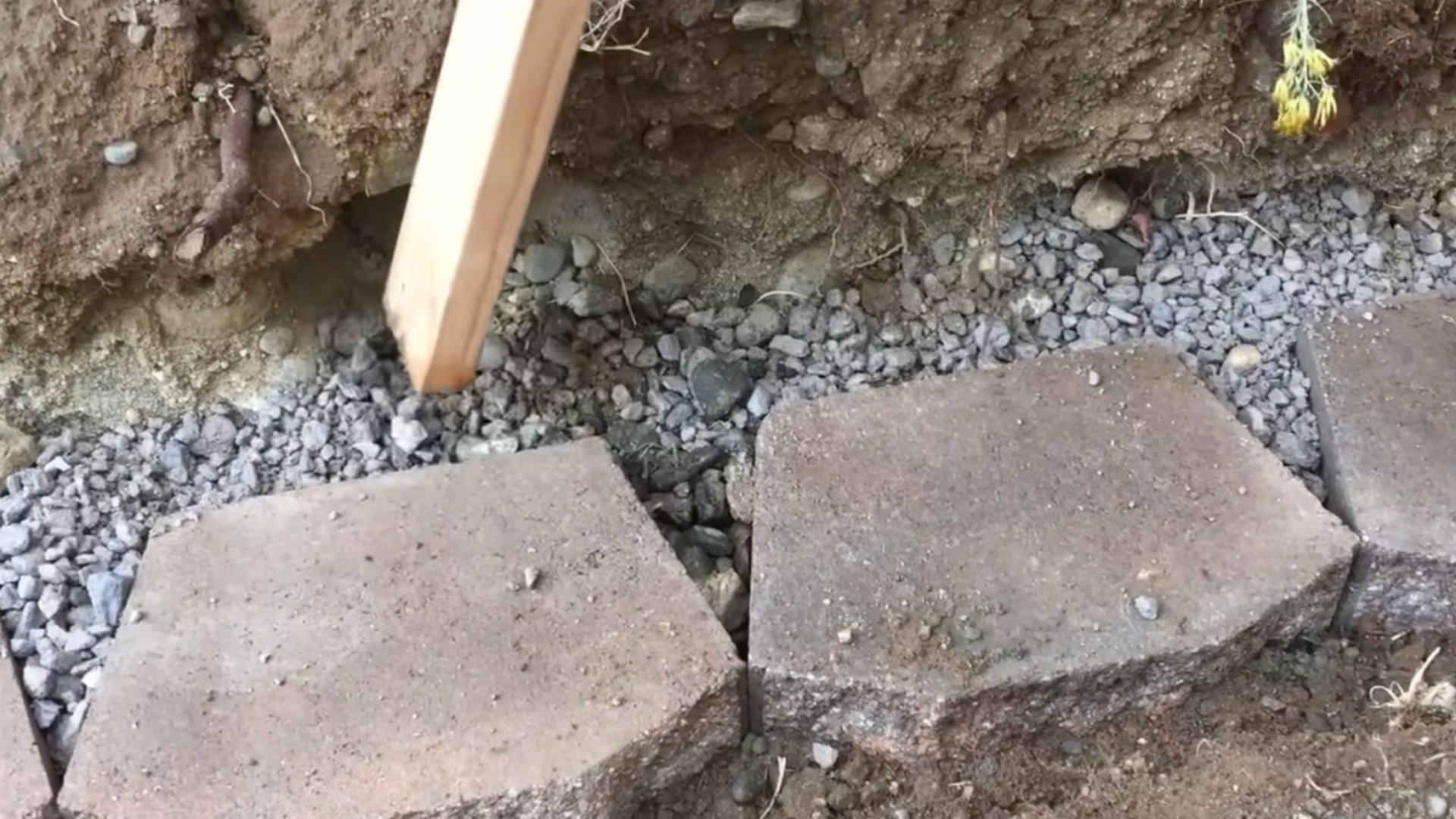

Step 5: Add Drainage and Backfill Properly
After the first layer is set, add drainage gravel behind the wall. This allows water to move through instead of building pressure that can push the wall forward.
Compact the gravel and add soil in front of the blocks to keep them in place. Continue adding backfill in layers and tamping it down.
Proper drainage and compaction are key to preventing long-term damage and maintaining the wall’s stability.

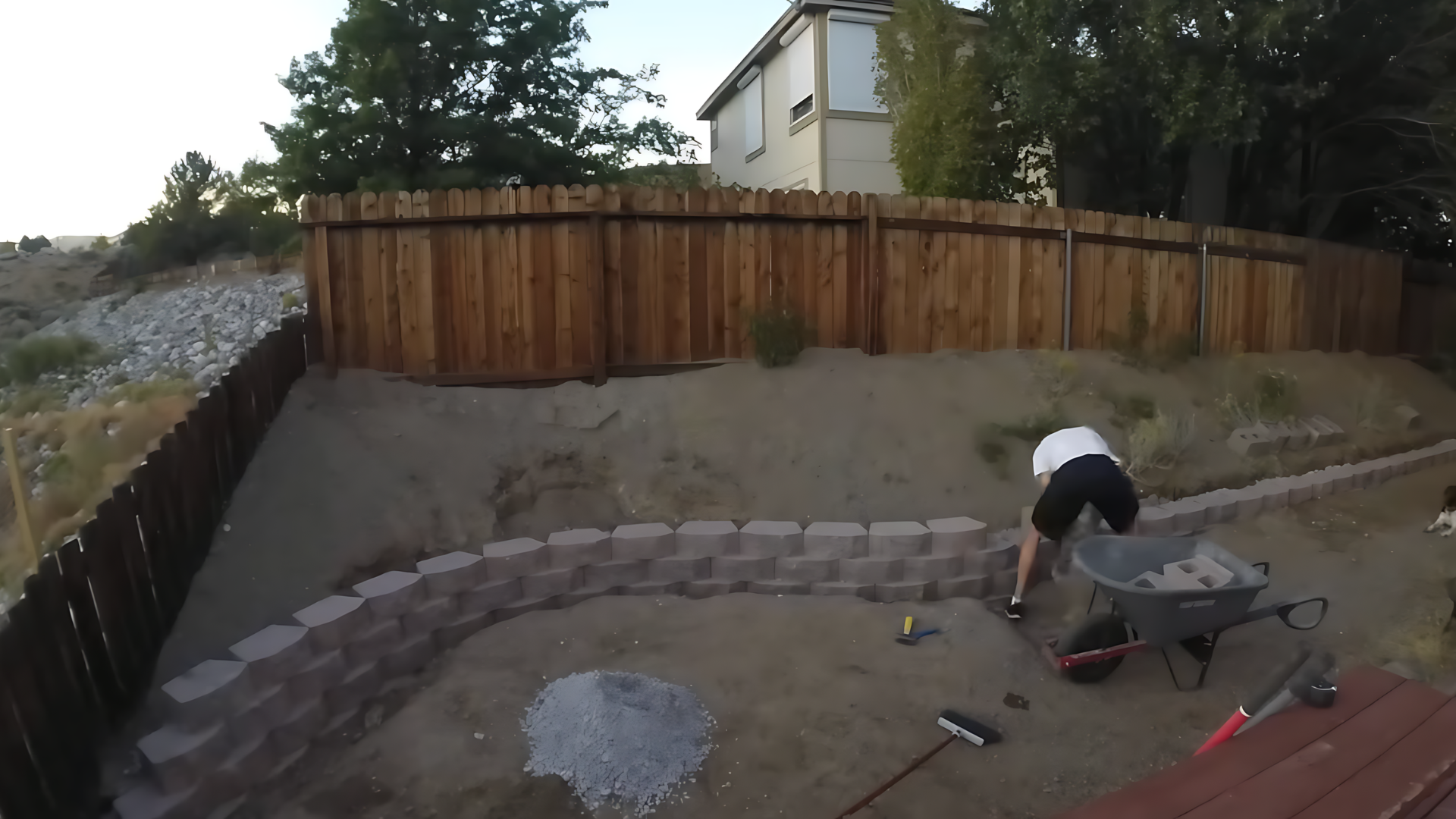

Step 6: Stack Remaining Layers and Finish the Wall
Continue stacking blocks one layer at a time, staggering the joints for added strength. After each layer, add gravel and soil behind the wall and compact it firmly.
Once the wall reaches the desired height, secure the top layer using adhesive. This helps lock the structure in place and prevents movement.
The final layer also enhances the overall appearance, giving the wall a clean, finished look.
For a more detailed guide, watch this YouTube tutorial by @StayHandy:
How to Make Your Retaining Wall Stronger
A strong retaining wall depends on proper construction techniques that improve stability, drainage, and long-term resistance to soil pressure.
- Build a solid base: Use compacted gravel layers to create a firm foundation that prevents shifting and settling over time.
- Level the first row: Ensure each block is perfectly level, as this row supports the entire wall structure above.
- Add proper drainage: Install gravel or a drain pipe behind the wall to reduce water buildup and pressure.
- Compact backfill properly: Fill and compact soil in layers to avoid future settling that could cause the wall to lean.
- Maintain a backward lean: Slightly angle the wall toward the soil to better resist pressure and improve structural strength.
- Secure the top layer: Apply adhesive to the cap blocks to lock them in place and prevent wall movement.
Cost to Build a Retaining Wall (DIY vs Professional)
The cost of building a retaining wall can vary based on size, materials, and site conditions. Understanding the difference between DIY and professional work helps set a realistic budget before starting.
Average Cost Overview
- Most retaining walls cost $20 to $60 per square foot installed
- A typical 50 ft long, 3 ft tall wall costs around $4,000 to $8,000 professionally
- Costs increase with height, drainage needs, and difficult soil conditions
DIY Cost (Materials Only)
Building the wall yourself significantly reduces labor costs.
- Typical DIY materials: $2,200 to $4,500 for a medium-sized wall
- Saves about 40–55% compared to hiring a contractor
- Best suited for walls under 3 feet tall, where no engineering is required
DIY projects mainly include costs for blocks, gravel, drainage materials, and tool rentals.
Professional Cost (Installed)
Hiring a contractor includes labor, equipment, and expertise.
- Typical total cost: $4,000 to $9,000 for the same wall
- Labor alone can add $2,000 to $5,000, depending on complexity
- Walls over 4 feet often require engineering and permits, increasing costs further
Professional work is recommended for taller or load-bearing walls where safety is a concern.
Quick Cost Comparison
| Type | Cost Range | Best For |
|---|---|---|
| DIY | $2,200 – $4,500 | Small walls, simple layouts |
| Professional | $4,000 – $9,000+ | Large or complex walls |
Maintenance Tips for Long-Lasting Walls
Regular upkeep helps your retaining wall stay stable, prevents damage, and extends its lifespan over time.
- Check drainage regularly: Ensure water flows freely and does not back up behind the wall after heavy rain.
- Inspect for cracks or leaning: Look for early signs of movement and fix small issues before they become serious problems.
- Remove weeds and debris: Clear plants and buildup that can trap moisture and weaken the structure over time.
- Repack loose soil areas: Fill and compact any settled soil behind or around the wall to maintain proper support.
- Clean the wall surface: Wash off dirt and stains to prevent buildup that may affect appearance and material condition.
- Check top layer stability: Ensure capstones remain secure and reapply adhesive if any movement is noticed.
Final Thoughts
Building a strong retaining wall takes time, effort, and careful attention to each step. The strength of the wall comes from a solid base, proper drainage, and consistent layering.
Skipping small details can lead to problems later, so it helps to work slowly and stay precise.
A well-built wall not only holds soil in place but also enhances the space’s appearance and functionality.
With the right approach, the structure can stay stable for many years. Review each step before starting and plan the work clearly.
If this guide helped, share it or save it for your next outdoor project.
Frequently Asked Questions
How Deep Should the Base Be for a Retaining Wall?
The base should usually be about 6 inches of compacted gravel. The trench depth should also allow part of the first block to sit below ground level for better stability.
Do I Need Drainage Behind a Retaining Wall?
Yes, drainage is important. Gravel or a drainpipe helps water flow out, reducing the pressure that can push the wall forward or cause damage.
How Tall Can a DIY Retaining Wall Be?
Most DIY retaining walls are best kept under 3 to 4 feet tall. Taller walls often require engineering support and local permits.
