If you’ve ever stared at a wall wondering exactly what size hole to cut, the rough opening for a 36 by 80-inch door has a specific answer, and it’s not 36 by 80.
Even a small mistake might affect the entire installation, so let’s take our time and be extra cautious!
Ensure it is correct on the first attempt so that your door fits perfectly, functions smoothly, and remains durable over time.
What Is a Rough Opening?

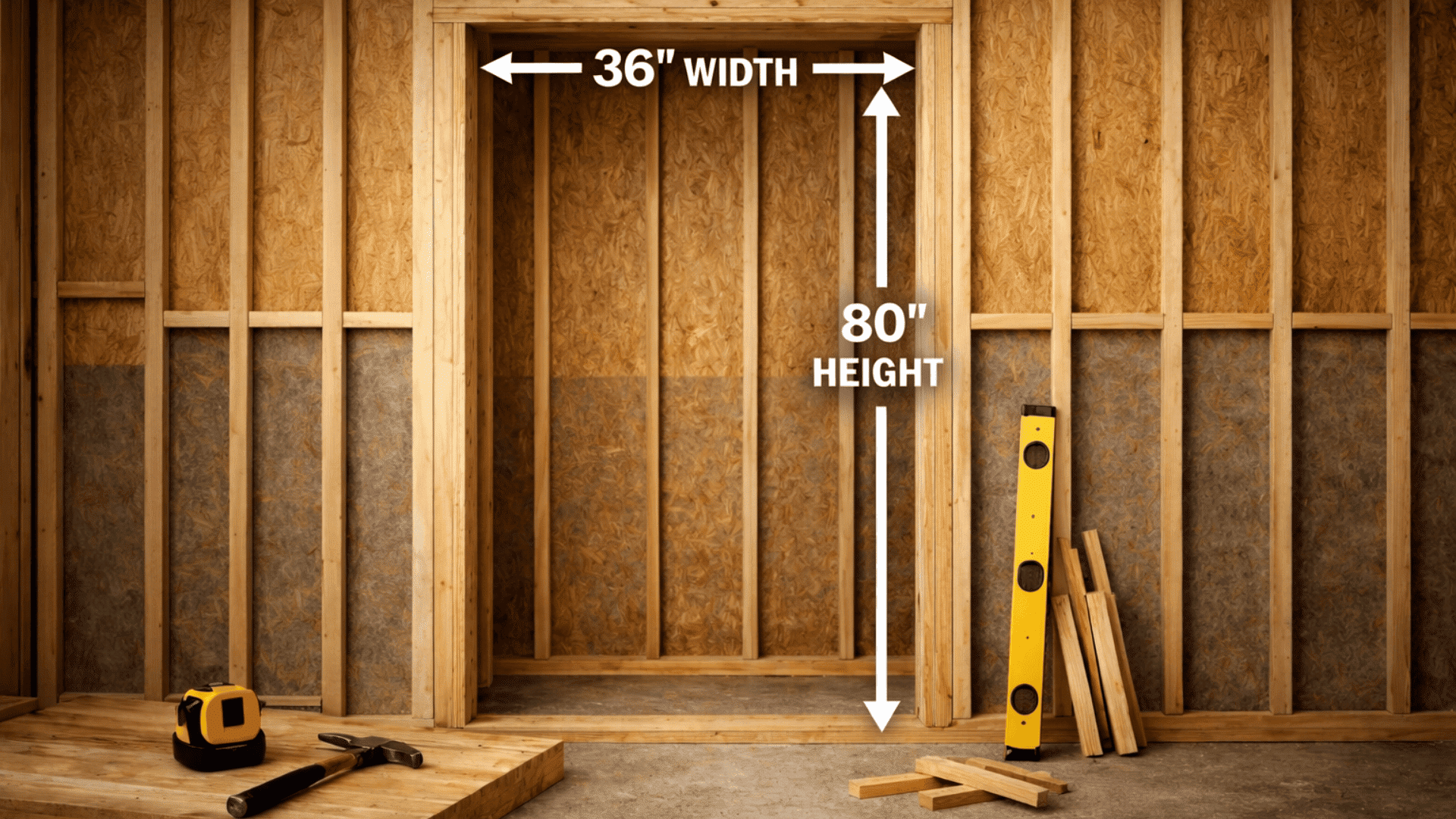

A rough opening is the framed hole in a wall built to hold a door or window before any finished trim, jambs, or casing is installed.
It’s made up of a header on top, two jack studs on the sides, and a rough sill at the bottom.
The opening must be slightly larger than the actual door slab; typically by about 2 inches in width and height, to leave room for the frame, shimming, and leveling

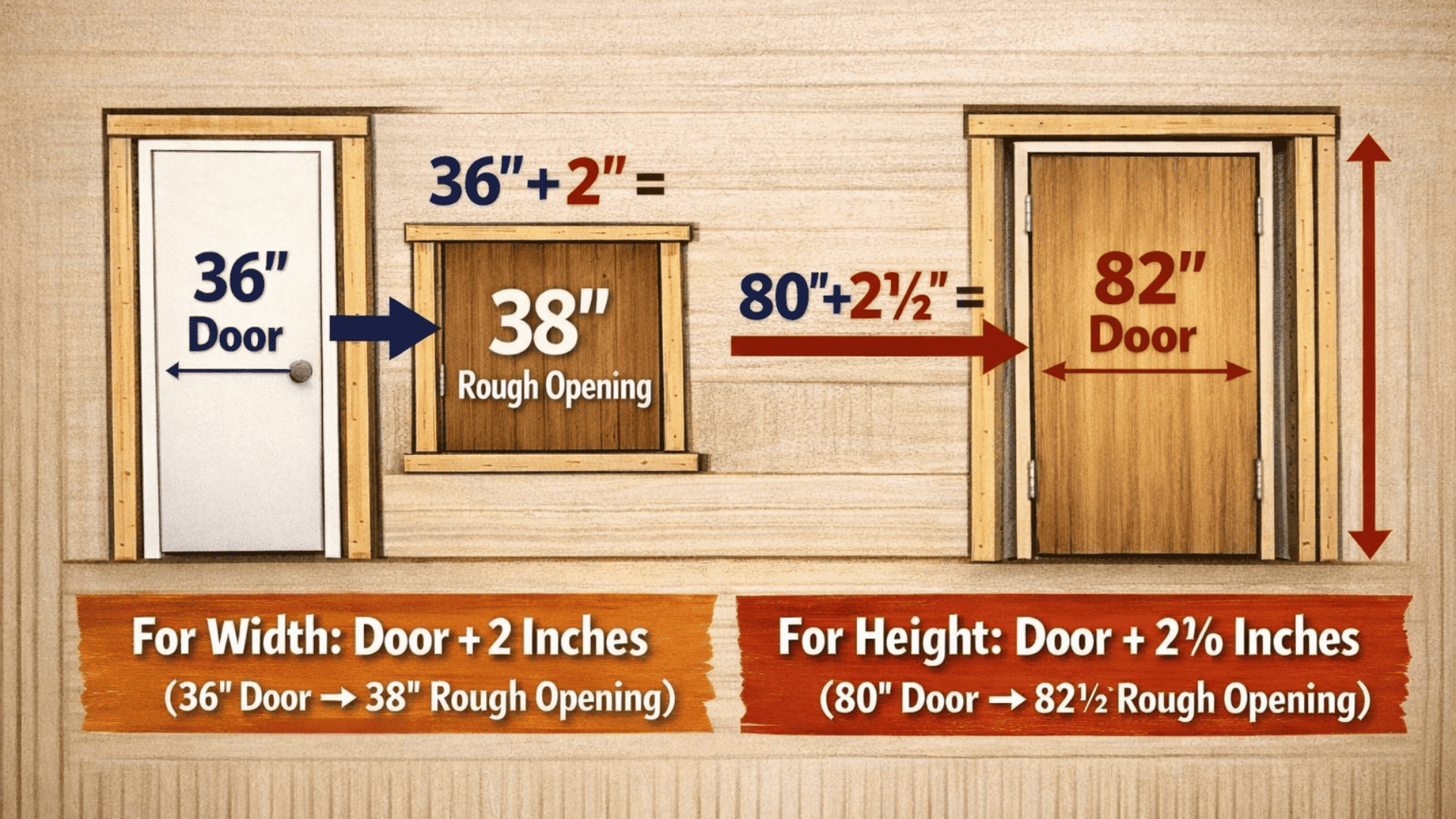

The Simple Formula to Calculate Any Door’s Rough Opening
Begin by considering your door size, then add a bit of extra space to ensure a comfortable fit.
- For width, add 2 inches; a 36-inch door needs a 38-inch rough opening.
- For height, add 2½ inches; an 80-inch door needs an 82½-inch opening.
That extra space isn’t wasted. It allows for shimming and leveling, accommodates the door frame and jamb thickness, and accounts for seasonal wood movement in the walls.
Skipping this extra space is a common mistake; a too-tight opening makes door installation nearly impossible.
Easy to remember: “Door Plus Two” for width, “Door Plus Two-and-a-Half” for height.
Interior vs. Exterior Door: Does the Rough Opening Differ
Interior and exterior doors often share rough opening sizes, but their structural and functional needs differ. Knowing these differences helps prevent framing errors and ensures proper installation.
| FEATURE | INTERIOR DOOR (36×80) | EXTERIOR DOOR (36×80) |
|---|---|---|
| Rough Opening | 38″ × 82½” | 38″ × 82½” |
| Framing | Lighter (2×4 studs, smaller header) | Heavier framing required |
| Header Size | Minimal load support | 2×6 or 2×8 for load-bearing |
| Weather Protection | Not required | Includes weather stripping, threshold |
| Extra Features | None | May include sidelites or transom |
| Lumber Type | Standard | Pressure-treated recommended |
Rough Opening Size Chart: Common Door Sizes
Not sure about your measurements? This quick-reference chart covers the most common door sizes. Just find your door and frame to the numbers shown.
| DOOR SIZE | DOOR WIDTH | DOOR HEIGHT | ROUGH OPENING WIDTH | ROUGH OPENING HEIGHT |
|---|---|---|---|---|
| 2/0 x 6/8 | 24″ | 80″ | 26″ | 82½” |
| 2/4 x 6/8 | 28″ | 80″ | 30″ | 82½” |
| 2/6 x 6/8 | 30″ | 80″ | 32″ | 82½” |
| 2/8 x 6/8 | 32″ | 80″ | 34″ | 82½” |
| 3/0 x 6/8 | 36″ | 80″ | 38″ | 82½” |
| 3/0 x 8/0 | 36″ | 96″ | 38″ | 98½” |

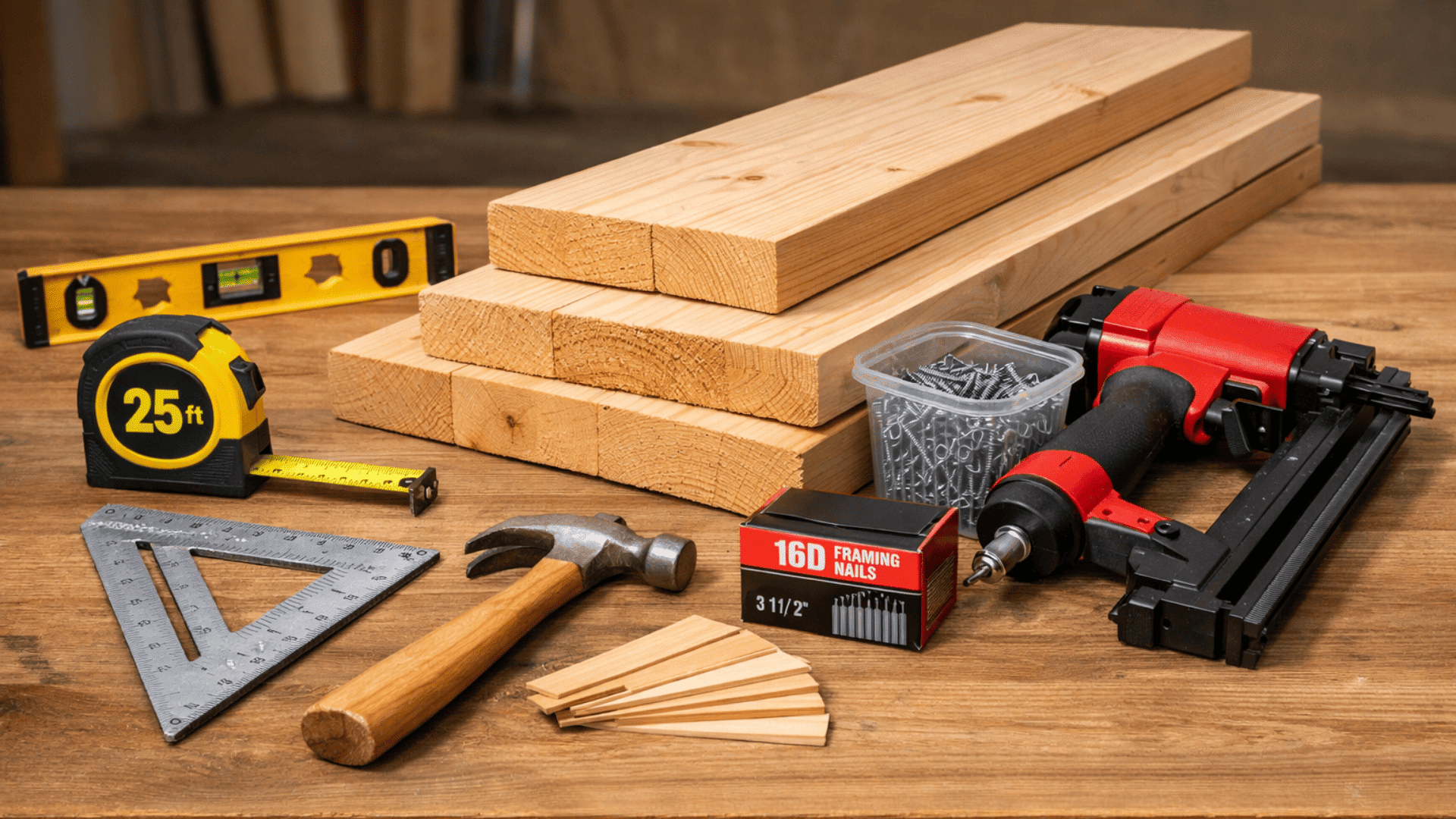

Tools and Materials You’ll Need
Before you start framing, gather everything upfront to avoid mid-project trips to the hardware store.
- Measuring tools: Tape measure, level, and carpenter’s square,
- Lumber: Use 2×4 lumber for interior walls; opt for 2×6 or 2×8 for exterior or load-bearing walls.
- Fasteners: Nails or screws, along with a hammer or nail gun.
- Shims: For adjusting the alignment precisely and leveling the frame.

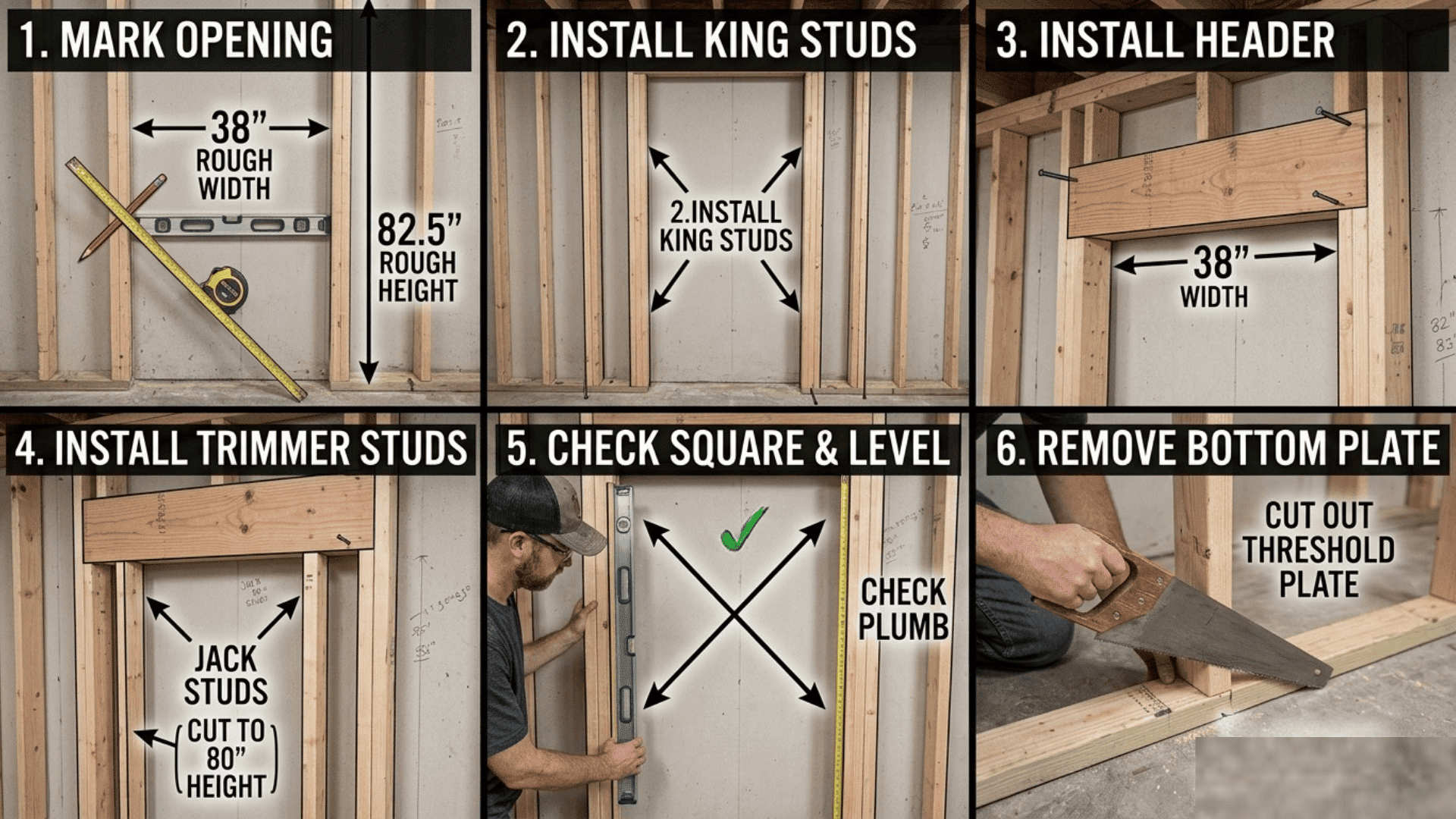

Step-by-Step: On How to Frame a Rough Opening for a 36×80 Door
Framing a rough opening is straightforward when you work in order. Follow these six steps to frame a clean, square opening ready for door installation.
Step 1: Mark the Opening Location
Mark 38″ wide and 82½” tall on the wall. Before cutting, check the area for any hidden plumbing, electrical wiring, or HVAC ducts.
Taking 10 extra minutes here prevents costly surprises later. Always double-check your measurements before picking up a saw. A pencil line and a long level make the most accurate guide marks.
Step 2: Install King Studs
Run full-length king studs from floor to ceiling on both sides of the marked opening. These form the outer backbone of your frame and carry the structural load around the opening.
Ensure studs are straight and properly nailed at the top and bottom plates. Avoid crooked or warped studs to prevent misalignments. Choose straight lumber carefully.
Step 3: Cut and Install the Header
Cut a 2×6 or 2×8 board to 38″ to match the rough opening width. Set it on top of the trimmer studs and nail it firmly in place.
For load-bearing walls, always double the header and verify local building codes for the correct size. This prevents sagging and keeps your opening square for years.
Step 4: Install Trimmer (Jack) Studs
Cut trimmer studs to 80”; your actual door height, and position them inside the king studs. These directly support the header above and define the side height of your opening.
Nail them tightly against the king studs with no gaps. Consistent trimmer height on both sides is critical for keeping the door perfectly level.
Step 5: Check for Square and Level
Measure diagonally from corner to corner in both directions; the numbers must match for a square opening. Use a level to confirm all vertical studs are perfectly plumb.
A skewed frame will cause door alignment problems down the road. Fix any issues now before the drywall goes up. A small adjustment at this stage saves hours of troubleshooting during door installation.
Step 6: Remove the Bottom Plate
Once all framing is complete, cut out the floor plate inside the opening. This clears the way for door installation and provides a clean, unobstructed threshold.
Use an oscillating tool or handsaw for a clean, controlled cut close to the studs. Score the cut line first with a utility knife to keep the edges neat and splinter-free.
Common Mistakes to Avoid When Framing a 36×80 Rough Opening
Even experienced framers make these errors. Knowing what to watch for before you start saves you from tearing out work and re-framing from scratch.
- Framing too small: Even a ¼-inch shortage means the door won’t fit, so always verify measurements twice before cutting
- Framing too large: Oversized openings create gaps, energy loss, and structural weakness that shims alone can’t fix
- Skipping the square check: An out-of-square frame causes doors to bind, stick, or fail to latch properly
- Wrong header size: Undersized headers on load-bearing walls will sag over time and distort the entire opening
- Ignoring finished flooring height: Hardwood, tile, or thick underlayment can eat into your height clearance, so account for it before framing
Wrapping It Up
Now you clearly understand how to measure and frame the rough opening for a 36-by-80-inch door. If you follow these simple steps, you’ll be all set to proceed with confidence!
Using proper measurements, quality lumber, and a square frame ensures smooth door installation.
Double-check every measurement, follow the steps in order, and don’t rush the process. Ready to start your project? Grab your tape measure and get framing with confidence.
